Contact Measurement Vision Auto Optical Inspection Machine For Engine Valve

Contact Measurement Machine for Engine Valve

The contact measurement machine is an important tool used to measure the diameter, taper runout, overall length, and groove type of valve stems. These measurements are crucial factors in ensuring the quality and functionality of valve components. This machine operates by making physical contact with the valve stem to conduct precise measurements, thereby obtaining key dimensions accurately. By analyzing the diameter, taper, length, and groove type, with its ability to provide detailed and reliable measurement data, this machine plays a crucial role in the manufacturing industry, especially in the production of valves and related components. By achieving precise measurement of key parameters, the contact measurement machine helps ensure the consistent quality and performance of valve components, enhancing product reliability and customer satisfaction.

Performance of Contact Measurement Machine for Engine Valve

1,Seat diameter:20mm~50mm/40mm~60mm

2,Stem diameter:4.5mm~10mm/8~13mm

3,Total length:85mm~145mm/145mm~230mm

4,Cycle Time:6S

5,Measuring station simplex design, valve vacuum adsorption, translation feed

Our service

1. Automation solution design and consulting
2. Automation equipment supply and integration
3. Software development and system integration
4. After-sales support and maintenance
5. Training and knowledge transfer

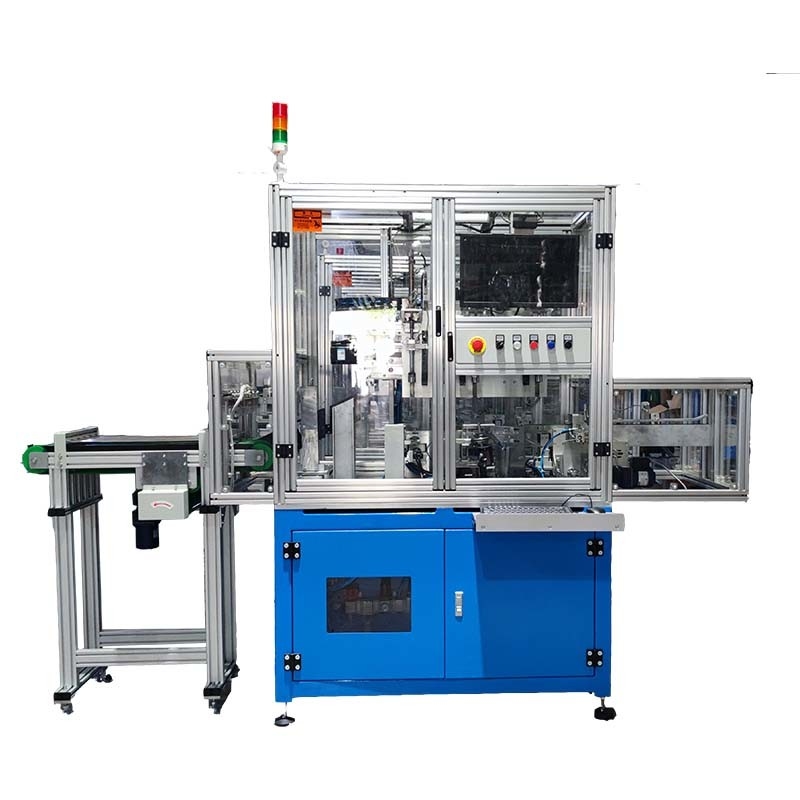

Feature picture of Contact Measurement Machine
