Product Details
Place of Origin: China
Brand Name: M-TECH
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD2,6000-USD3,2000/set
Packaging Details: Plywood case
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Frequency: |
50Hz |
Origin: |
China |
Production Capacity: |
1000 Pieces/hour |
Pipe Diameter Range: |
6mm-20mm |
Power Source: |
Electric |
Voltage: |
220V |
Cooling System: |
Water Cooling |
Pipe Material: |
Aluminum |
Warranty: |
1 Year |
Operating Mode: |
Automatic |
Model: |
XYZ-123 |
Control System: |
PLC |
Frequency: |
50Hz |
Origin: |
China |
Production Capacity: |
1000 Pieces/hour |
Pipe Diameter Range: |
6mm-20mm |
Power Source: |
Electric |
Voltage: |
220V |
Cooling System: |
Water Cooling |
Pipe Material: |
Aluminum |
Warranty: |
1 Year |
Operating Mode: |
Automatic |
Model: |
XYZ-123 |
Control System: |
PLC |

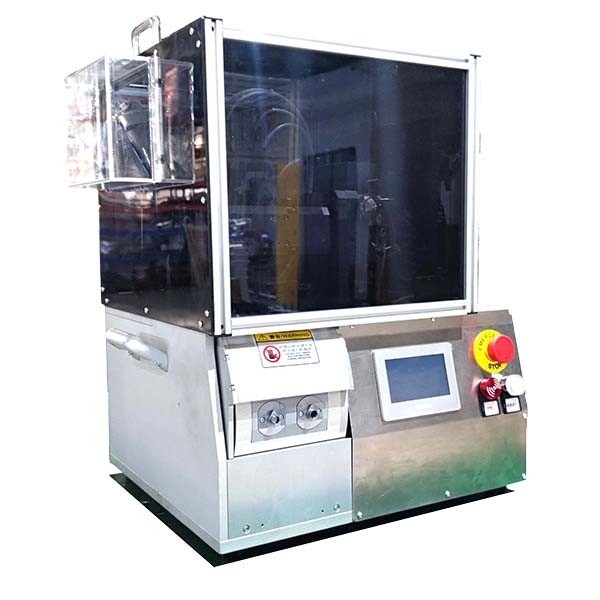

Our O-Ring Automatic Assembly Machine is specifically designed for automotive air conditioning pipes, ensuring efficient and precise installation of O-rings into the grooves of the pipes. The equipment features a high-quality anodized aluminum alloy base, offering a robust and durable structure with a sleek and modern appearance. The overall design incorporates brown PC panels and European standard aluminum profile enclosures, providing both aesthetic appeal and safety.
The assembly machine is equipped with an advanced vibratory bowl feeding system, utilizing a flipping mechanism for precise material support and retrieval. It employs a high-precision cylinder to press the O-ring firmly into the air conditioning pipe groove, ensuring efficiency and accuracy at every stage of the assembly process. Our O-Ring Automatic Assembly Machine offers a reliable solution for the production of automotive air conditioning pipes, significantly enhancing production efficiency and ensuring product quality.
| NO. | Name | Parameters | Note |
|---|---|---|---|
| 1 | C/T | ≤2.5S | do not include feeding and downloading |
| 2 | OEE | ≥90% | |
| 3 | Uploading | Vibrating disk automatically feeding | |
| 4 | Input Voltage | 220-380V | Power requirement |
| 5 | Input air pressure | 4-7bar | Air source requirement |
| 6 | Misstake-proofing |
Yes |
|
| 7 | Basement | Aluminum and stainess steel | |
| 8 | Customization | Yes |
