Industrial Aluminum Tube AC Pipe Punching Machine For Automotive

Punching Machine for Air Conditioning Pipe

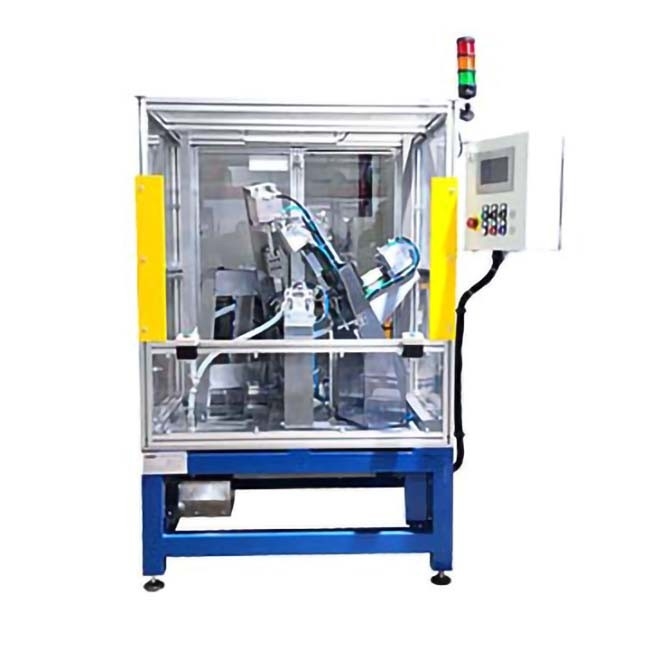

The Air Conditioning Pipe Punching Machine is developed for the aluminum pipe punching process of automotive air conditioning pipes. The machine is designed to punch three holes on the product in one clamping operation, significantly improving production efficiency and process accuracy.

In addition to efficiently completing the punching task, the air conditioning pipe punching machine also has the function of collecting the punched aluminum pieces after the punching process, effectively preventing aluminum scraps from scattering and waste, ensuring a neat production environment and efficient resource utilization.

This equipment not only enhances production efficiency but also meets the modern industrial requirements for automation, precision, and environmental protection, bringing convenience and innovation to the automotive air conditioning pipe production field. The air conditioning pipe punching machine plays a crucial role in the aluminum pipe punching process for automotive air conditioning pipes, being a key equipment for increasing production efficiency and product quality.

Equipment characteristics

1. The three holes on the product need to be punched in one operation with one clamping of the equipment.
2. Equipment cycle time: CT <= 20 seconds per piece
3. The equipment is equipped to collect the punched aluminum pieces after punching.
4. The punching process involves cutting slices from the aluminum tube using a punch, followed by shaping the cut area into a circle. The        punching process is illustrated in the diagram below:
5. Aluminum Tube: The aluminum tube needs to be clamped by the mold during processing, with the clamping direction consistent with the direction of circularization at the cutting point.
6. Punch Array Cutting: A punch cuts off a chunk of aluminum from the side of the aluminum tube.
7. Circularization at Cutting Point: After the punch completes the cutting, circularization is carried out at the cutting point.
