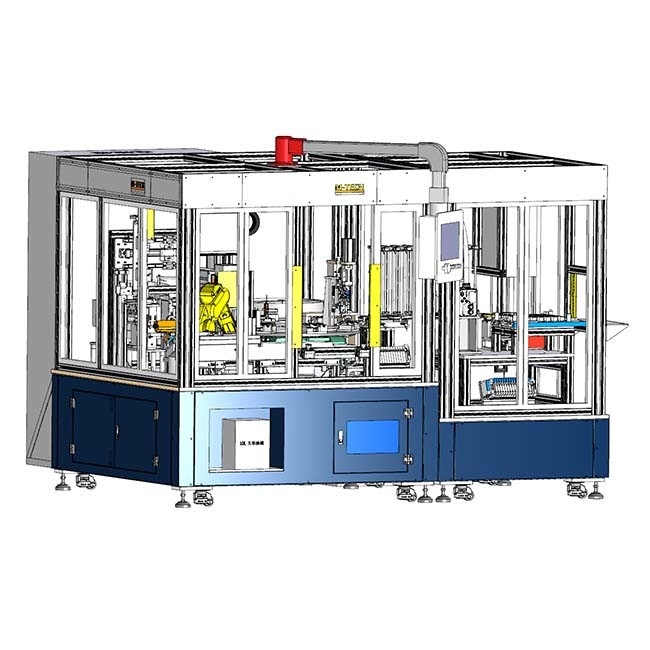

Feature View of Semi-Automatic Brake Rocker Arm Assembly Line

The semi-automatic brake rocker arm assembly line is designed for assembling brake rocker arms and integrates advanced technologies to enhance production efficiency and ensure product quality.The assembly line also features data traceability, allowing for tracking and recording of each step in the assembly process. Data traceability ensures transparency and accountability in the manufacturing process. Additionally, the system is integrated with the MESH system for seamless storage and retrieval of assembly data. By interfacing with the MESH system, all relevant information regarding the production of brake rocker arms can be securely stored and easily accessed for analysis, quality control, and future reference. This integration enhances efficiency, streamlines data management, and facilitates continuous improvement in the manufacturing process.

Equipment Introduction

1. Laser Marking

Each brake rocker arm undergoes precise laser marking to ensure unique identification and traceability, improving production efficiency and quality control.

2. Roller Automatic Feeding
The automatic feeding system ensures smooth supply of raw materials, reducing human intervention, enhancing assembly efficiency, and ensuring continuous operation of the production line.

3. Copper Pin Shaft Diameter Measurement
Precision measurement equipment is used to measure the diameter of copper pin shafts, ensuring compliance with specifications to enhance product stability and reliability and avoid issues caused by size deviations.

4. Pin Shaft Press-fitting
At this stage, the pin shaft is accurately press-fitted to the specified position, ensuring assembly accuracy and consistency to improve product performance and durability.

5. Oil Immersion and Water Removal
Through oil immersion and water removal treatment, products are protected from moisture erosion during use, extending their service life and enhancing product reliability and stability.

6. Tightening System
The automatic tightening system ensures that each component is properly secured, preventing issues caused by loosening and enhancing product safety and stability.

7. Locking System
The locking system ensures that all components are correctly locked, preventing detachment or loosening during use, thus improving product reliability and safety.

This semi-automatic brake rocker arm assembly line is designed to increase production efficiency, reduce manual intervention, ensure product quality and consistency, and bring higher benefits and reliability to manufacturing enterprises, representing an important innovation in modern manufacturing industry.

Technical Parameters of Semi-Automatic Brake Rocker Arm Assembly Line

Feature Picture of Semi-Automatic Brake Rocker Arm Assembly Line
