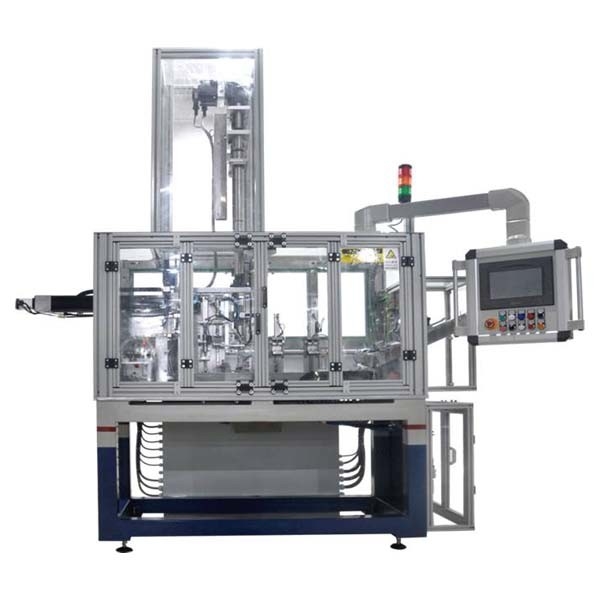

Automated Linear Sodium Liquid Injection Filling Machine PLC Control

Sodium Filling Machine for Engine Valve Manufacturing

The Sodium Filling Machine is suitable for the sodium filling process of hollow valves. It is an advanced equipment specifically designed for the sodium filling process of hollow valves. The sodium filling process is an important step in ensuring the performance and reliability of valves, and our sodium filling machine aims to provide an efficient, precise, and reliable solution for filling hollow valves with sodium.

The feeding rack is sturdy and aesthetically pleasing, with solid and smooth welding seams. It ensures smooth material feeding and convenient and reliable adjustment. The machined parts have a chrome-plated surface, and the aluminum profile frame undergoes standard anti-corrosion treatment. The feeding device operates smoothly and reliably, with adjustable settings. In case of any feeding failures, there are electrical interlocks and alarms in place.

The machine features deep inspection capabilities, automatic sorting of defective products, and two automatic inspection points.

We are committed to delivering excellent products and providing high-quality customer service. Whether you are in the automotive, aerospace, petrochemical, or any other industry, our sodium filling machine is the ideal choice for improving product quality and production efficiency. We look forward to working with you to achieve success and development.

Features of Sodium Filling Machine

1.   The equipment is based on square tube welding.
2.   PLC electrical control panel with a human-machine interface.
3.   Linear arrangement of input and output stations (to be determined on-site by the seller in consultation with the buyer's existing equipment for easy wiring).
4.   Automatic feeding mechanism.
5.   Deep inspection and nitrogen (helium) filling station.
6.   Sodium extrusion station.
7.   Sodium filling station.
8.   Sodium depth inspection (non-contact measurement).
9.   Servo mechanical arm.
10. Conveying channel for qualified and non-qualified products.
11. Enclosed housing.
12. Electrical control system.
13. Pneumatic control system.
14. Nitrogen detection (1 location, in areas with high oxygen concentration when opening the door).
15. Humidity sensor.

Our Service for Sodium Filling Machine

1.  Automation Process Design and Consulting

2.  Automation Equipment Supply and Integration
3.  Programming and Software Development
4.  System Integration and Debugging
5.  Training and Maintenance Support

Feature of Picture for Sodium Filling Machine
